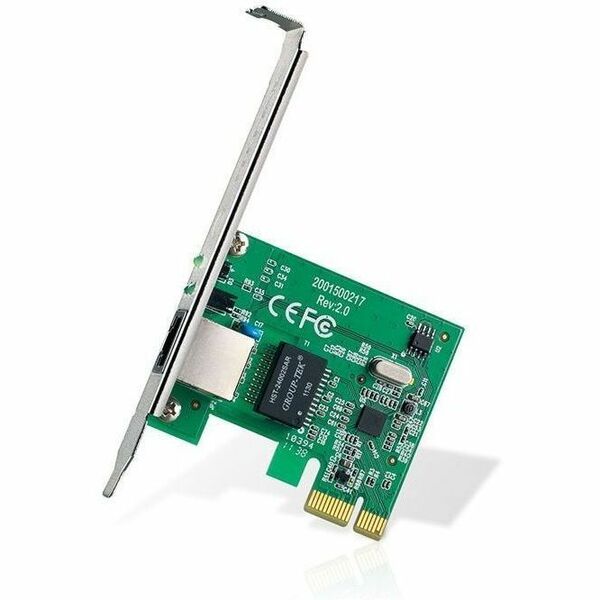

TP-Link TG-3468 Gigabit PCI Express Network Adapter - PCI Express - 1 Gbit/s Data Transfer Rate - 1 Port(s) - 1 - Twisted Pair - Low Profile Bracket Height - 10Base-T, 100Base-TX, 1000Base-T - Plug-in Card - Green

General Information

---

Manufacturer:TP-LINK Technologies Co., Ltd
Manufacturer Part Number:4888087
Manufacturer Website Address:http://www.tp-link.com
Brand Name:TP-Link
Product Model:TG-3468
Product Name:TG-3468 Gigabit PCI Express Network Adapter
Marketing Information:

What This Product Does

TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.

The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.

Product Type:Gigabit Ethernet Card

Technical Information

---

Features:Wake on LAN (WOL)

Interfaces/Ports

---

Host Interface:PCI Express
Total Number of Ports:1
Number of Network (RJ-45) Ports:1
Interface/Port Details:1 x 10/100/1000Mbps RJ45 port

Media & Performance

---

Media Type Supported:Twisted Pair
Maximum Operating Distance:328.08 ft (100000 mm)
Maximum Data Transfer Rate:1 Gbit/s

Network & Communication

---

Network Technology:

• 10Base-T
• 100Base-TX
• 1000Base-T

Environmental Conditions

---

Minimum Operating Humidity (Non-condensing):90%
Maximum Operating Humidity (Non-condensing):10%

Physical Characteristics

---

Color Family:Green
Product Color:Green
Form Factor:Plug-in Card
Bracket Height:Low Profile
Height:0.80" (20.32 mm)
Width:3.10" (78.74 mm)
Depth:4.80" (121.92 mm)

Miscellaneous

---

Package Contents:

• TG-3468 Gigabit PCI Express Network Adapter
• Resource CD
• Quick Installation Guide

Application/Usage:Network
Device Supported:Computer Case
Operating System Compatibility:

• Windows 11
• Windows 7 x32
• Windows 7 x64
• Windows Vista x32
• Windows Vista x64
• Windows XP x64
• Windows 8
• Windows 8.1
• Windows XP
• Windows 10

Assembly Required:No
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:1 Year
