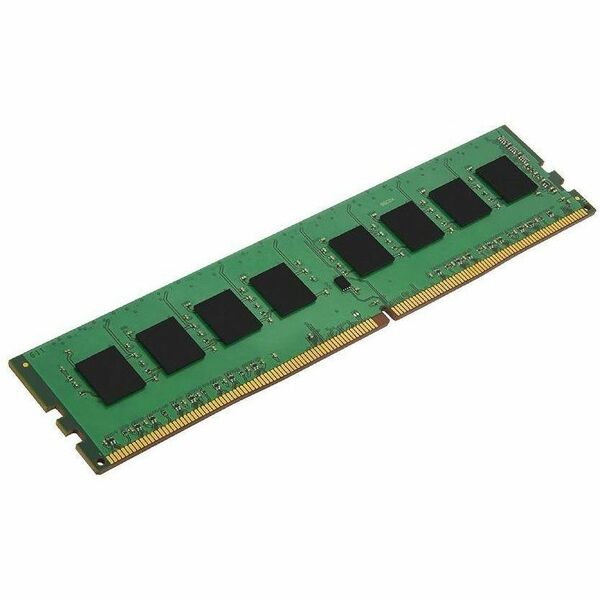

Kingston 16GB 1Rx8 2G x 64-Bit PC4-3200 CL22 288-Pin DIMM - 16 GB - DDR4-3200/PC4-25600 DDR4 SDRAM - 3200 MHz Single-rank Memory - CL22 - 1.20 V - 288-pin - DIMM - Lifetime Warranty

General Information

---

Manufacturer:Kingston Technology Company
Manufacturer Part Number:KVR32N22S8/16
Manufacturer Website Address:http://www.kingston.com
Brand Name:Kingston
Product Line:ValueRAM
Product Name:16GB 1Rx8 2G x 64-Bit PC4-3200 CL22 288-Pin DIMM
Marketing Information:

This document describes ValueRAM's KVR32N22S8/16 is a 2G x

64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8,

memory module, based on eight 2G x 8-bit FBGA components. The

SPD is programmed to JEDEC standard latency DDR4-3200 timing of

22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Packaged Quantity:1 Each
Product Type:RAM Module

Technical Information

---

Memory Size:16 GB
Memory Technology:DDR4 SDRAM
Memory Voltage:1.20 V
Memory Speed:3200 MHz
Memory Standard:DDR4-3200/PC4-25600
Memory Rank:Single-rank
CAS Latency:CL22

Physical Characteristics

---

Number of Pins:288-pin
Form Factor:DIMM
Width:1.23" (31.20 mm)
Length:5.25" (133.30 mm)

Miscellaneous

---

Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:Lifetime
