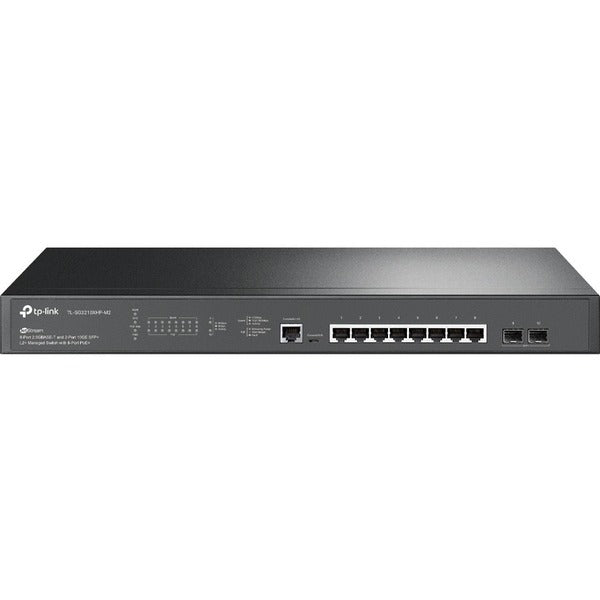

Jetstream 8 Port Multi-Gigabit Switch - 8 × 2.5-Gigabit ports unlock the highest performance with multi-gig bandwidth. 2× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity. 8× PoE+(802.3at/af) 10/100/1000 Mbps RJ45
Manufacturer:TP-LINK Technologies Co., Ltd
Manufacturer Part Number:TL-SG3210XHP-M2
Manufacturer Website Address:http://www.tp-link.com
Brand Name:TP-Link
Product Line:JetStream
Product Model:TL-SG3210XHP-M2
Product Name:JetStream TL-SG3210XHP-M2 Ethernet Switch*
Marketing Information:
Ultrafast 2.5G PoE+ Managed Switch with 10G Uplink for a Complete Omada Network
-
2.5G PoE+ Portsfor WiFi 6
8× 2.5 Gbps Ports Unlock the Full Potential of WiFi 6 APs
-
10G Lightning-Fast Uplink Connection
2× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity
-
PoE+ Output
8 PoE+ Ports with Total 240 W Power Budget
-
Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network
Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network
Unlock the Full Potential of WiFi 6 with Multi-Gigabit PoE+ Ports
Featuring 8× 2.5 Gbps PoE+ ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 6 APs. Designed to use a single Ethernet cable for both data and power transmission, it supports up to 240 W total PoE power budget and flexible installation to fit in various application scenarios.
Enterprise Switch with 10G Uplink
2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.
Software-Defined Networking (SDN) with Cloud Access
Omada's Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
-
Hassle-Free Cloud or On-Premises Controllers
-
Multi-Site Cloud Management
-
Zero-Touch Provisioning (ZTP)
-
Intelligent Monitoring
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses, and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
Product Type:Ethernet Switch
Total Number of Network Ports:8
Uplink Port:Yes
Modular:Yes
Network (RJ-45):Yes
Port/Expansion Slot Details:
- 8 x 2.5 Gigabit Ethernet PoE+
- 2 x 10 Gigabit Ethernet Expansion Slot
Media Type Supported:
- Optical Fiber
- Twisted Pair
Ethernet Technology:
- 2.5 Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 2.5GBase-T
- 10GBase-X
Total Number of Expansion Slots:2.0
Expansion Slot Type:SFP+
Number of SFP+ Slots:2
Layer Supported:3
Networking Standards:
- IEEE 802.1p
- IEEE 802.3ad
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.3x
- IEEE 802.1Q
- IEEE 802.1x
Manageable:Yes
PoE (RJ-45) Port:Yes
PoE Budget:240 W
Frequency:
- 50 Hz
- 60 Hz
Power Source:Power Supply
Power Consumption:17.20 W
Form Factor:
- Rack-mountable
- Desktop
Height:1.70" (43.18 mm)
Width:17.30" (439.42 mm)
Depth:7.10" (180.34 mm)
Package Contents:
- JetStream TL-SG3210XHP-M2 Ethernet Switch*
- Power Cord
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
Country of Origin:China
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Limited Warranty:5 Year
