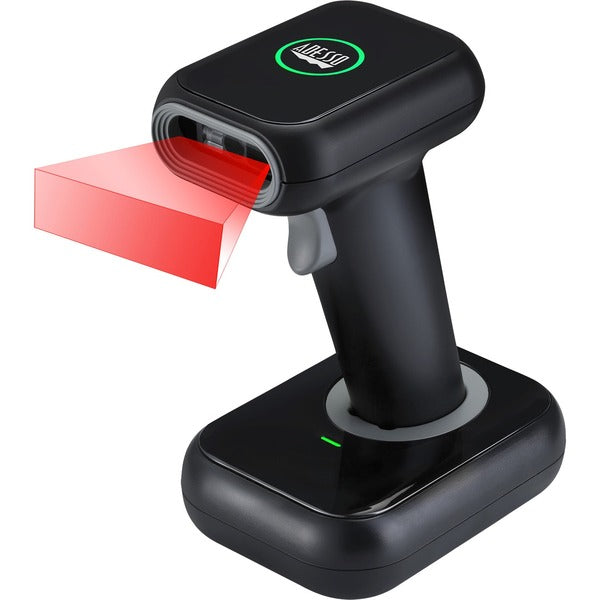

Adesso NuScan 2700R 2D Wireless Barcode Scanner with Charging Cradle - Wireless Connectivity - 120 scan/s - 1D, 2D - CMOS - , Radio Frequency - USB - Black - IP54 - Warehouse, Library, Healthcare, Retail, Logistics

General Information

---

Manufacturer:Adesso, Inc
Manufacturer Part Number:NUSCAN2700R
Manufacturer Website Address:http://www.adesso.com
Brand Name:Adesso
Product Line:NuScan
Product Model:NuScan 2700R
Product Name:NuScan 2700R 2D Wireless Barcode Scanner with Charging Cradle
Marketing Information:

The Adesso NuScan 2700R is the ultimate wireless barcode scanning solution. Its new decoding engine allows it to decode both 2D barcodes, such as QR Code, PDF417, and Data Matrix, and 1D barcodes. The scanning rate of 120 scans per second increases accuracy, therefore increasing efficiency. The 2.4 GHz RF technology provides a wireless range of up to 150 feet. Its built-in USB receiver also makes the scanner completely Plug-n-Play!

Product Type:Barcode Scanner

Technical Information

---

Connectivity Technology:Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:1D:

• EAN-8
• EAN-13
• EAN-13 2 add-on
• EAN-13 5add-on
• ISSN
• ISBN
• UPC-A
• UPC-E
• Code11
• Code 32
• Code 39
• Code 93
• Code 128
• Codabar
• Industrial 2 of 5
• Interleaved 2 of 5
• Matrix 2 of 5
• GS1-128
• GS1 Databar (RSS14)
• GS1 DataBar Limited
• GS1 DataBar Expanded

2D:

• PDF417
• MicroPDF417
• MicroQR
• Data Matrix
• QR
• Aztec

Image Sensor Type:CMOS
Scan Rate:120 scan/s
Maximum Ambient Light:70000 lux
Drop Specification:

Withstanding 1.5m freefall drops

Minimum Print Contrast:25%

Network & Communication

---

Radio Frequency:Yes

Interfaces/Ports

---

Host Interface:USB

Physical Characteristics

---

Form Factor:Handheld
Color Family:Black
Product Color:Black
Height:2.44" (61.98 mm)
Width:3.40" (86.36 mm)
Length:6.61" (167.89 mm)
Weight (Approximate):3.52 oz (99.79 g)

Miscellaneous

---

Package Contents:

• 2D Handheld Wireless Barcode Scanner
• Charging Cradle
• Quick Start Guide

Ingress Protection (IP) Rating:IP54
Application/Usage:

• Warehouse
• Library
• Healthcare
• Retail
• Logistics

Platform Supported:

• PC
• Mac
• Android

Country of Origin:Taiwan
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:1 Year
